LA40

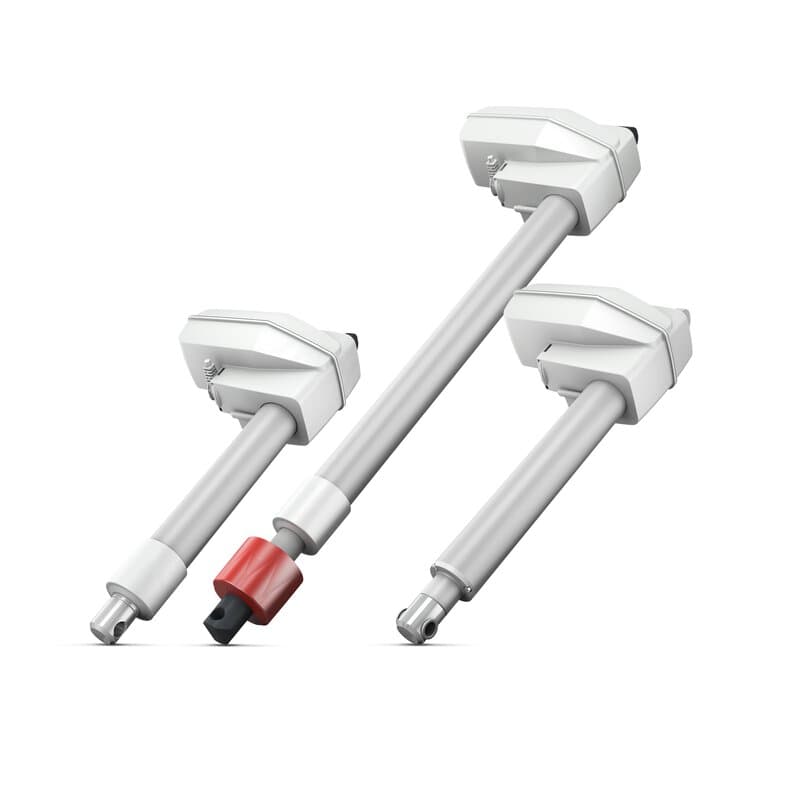

Designed for a wide range of healthcare applications, the LA40 is a powerful, quiet actuator available in 1,500 N, 4,000 N, 6,000 N and 8,000 N versions.

play-icon

Quick release with comfort - LA40 QR Damper

LA40

Offering high speed and performance, the LA40 is a durable actuator that features a mechanical endstop for first failure safety making it the perfect solution for current and future healthcare applications. The LA40 family is rated up to IPX6 with select versions rated up to IPX6 Washable DURA™.

Within the LA40 family, three versions are available with a push of 8,000 N:
•    Standard
•    High Performance (HP)
•    Patient Lift (PL)
Based on knowledge and experience gained from previous actuator families, LINAK has developed new gear and braking principles that improve the efficiency of the LA40. These innovative solutions are covered by several patents.

Equipped with a socket for exchangeable cables, the LA40 has the same flexibility as previous families, and existing minifit cables can be used.

Designed for a wide range of applications within the healthcare industry such as care and hospital beds, treatment tables, patient lifts and dental chairs, the LA40 family has a polished design increasing cleanability and mounting flexibility. The LA40 can be ordered with an optional spline function (push only) as well as quick release.

LA40 8,000 N range:
•    The standard version runs 8,000 N from 0-50 mm stroke length with a subsequent decreasing load on the rest of the stroke length
•    The High Performance version can perform 8,000 N on full stroke length
•    The Patient Lift version can perform 8,000 N on full stroke length

LA40 data sheet

View the data sheet as an online magazine or download the PDF.

Linear actuators and electronics user manual

This user manual will tell you how to install, use and maintain your LINAK electronics. We are sure that your LINAK system will afford you many years of problem-free operation.

Focus on couches and tables

Flexible functionality and improved ergonomics are some of today’s needs for treatment and examination couches.

Focus on dental chairs

LINAK actuator systems help create smooth movement and comfort in dental chairs.

Focus on stretchers

Full functionality, battery power and comfort for mobile applications. LINAK provides a system solution for stretchers, bed trolleys and other mobile applications.

Actuator systems for operating tables

Power, precision, and smooth movement in advanced surgery applications

Focus on wheelchairs

Increasing comfort, reliability and safety for wheelchair users.

MEDLINE & CARELINE product overview

Dive into the wide variety of innovative MEDLINE & CARELINE products that can help you improve your hospital and healthcare equipment.

Power & Speed

Have both power and speed in your application. LINAK systems provide you with extra lifting capacity without losing out on speed or compromising safety.

Safety folder

Different applications need different safety features. Regardless of what healthcare application you are designing, LINAK offers a wide variety of standard and optional safety features.

LA40 QR Damper - quick release with comfort

With the LA40 Quick Release with Damper you improve safety for care staff and increase comfort for bed-bound patients.

How do linear actuators work?

A common type of linear actuator is an electric linear actuator. It is made up of three main components: spindle, motor and gears. The motor can be AC or DC depending on the power needs and other influencing factors.

Once a signal is sent by the operator, which can be through a control as simple as a button, the motor converts the electric energy into mechanical energy rotating the gears connected to the spindle. This rotates the spindle and causes the spindle nut and piston rod to travel outwards or inwards depending on the signal to the actuator.

As a rule of thumb, a high thread count and smaller spindle pitch will cause slow movement but a much higher load capacity. On the other hand, a low thread count, and higher spindle pitch, will favor fast movement of lower loads.


Logo for Actuator Academy about actuator technology

Visit the Actuator Academy™
Explore the aspects of what makes an actuator ideal for use with industrial machinery and discover the technology behind it.

Welcome to the LINAK Actuator Academy™



What are the different types of electric linear actuators?

There are many types and sizes of electric linear actuators. From small and compact to fit in tight spaces, like in wheelchairs, to large and powerful to move heavy items like a wheel loader engine hood. In addition to size and power, there are also many different designs of electric linear actuators.

The original design has a motor housing that is outside of the gear and spindle profile. But when space is limited, an inline actuator is used so that the motor only extends the shape of the profile. For desks and some medical applications, lifting columns are used for an inline motor housing with two and three stage options.

Since the founder and CEO of LINAK, Bent Jensen, made his first electric linear actuator in 1979, the company has continued to develop new actuators and refine the innovative technology behind them to improve movement solutions for several industries.

LINAK designs and manufactures many types of linear actuators and lifting columns with various speeds, stroke lengths, and capacities. From the compact, inline LA20 to the robust LA36, LINAK actuators are built to fit almost any application.

With an almost endless list of customization options to help design an actuator specifically to fit unique applications, the range of LINAK actuators is even greater than the vast product range listed.

LINAK products

What is a linear actuator?

A linear actuator is a device or machine that converts rotational motion into linear motion and linear movement (in a straight line). This can be done through electric AC and DC motors, or the movement can be powered by hydraulics and pneumatics.

Electric linear actuators are a preferred option when precise and clean movement is needed. They are used for all types of applications where tilting, lifting, pulling or pushing with force is needed.

LINAK business areas



Move on - go electric!

Learn about the advantages of actuator solutions compared to hydraulic systems.

Online Magazine



What is a linear actuator used for?

Actuators can be found anywhere, in homes, offices, hospitals, factories, farms, and many other places. Our electric actuators bring movement to the office and home with adjustable options for desks, kitchens, beds, and couches. In hospitals and medical centers, you will find actuators adding movement to hospital beds, patient lifts, surgery tables and more.

For industrial and rugged environments, electric linear actuators can replace hydraulic and pneumatic solutions found in agriculture, construction, and in industrial automation equipment.

LINAK business areas

Why use a linear actuator?

Electric linear actuators increase efficiency and give users precision movement through a variety of control options and accessories. Control options for electric linear actuators include handsets, footswitches, desk controls, computer software, mobile apps and much more.

With no need for hoses, oils, or valves, electric linear actuators require no maintenance and create a safe environment for users. High-quality electric actuators are also put through a variety of tests that push the actuators to extremes. This is done to ensure optimal performance at any given time in any situation. They also are designed, along with their accessories, to be easily mounted and installed in a variety of applications.

Making it easy for anyone to add precision movement where they need it. Being electric adds opportunities for additional smart features like CAN bus (LINAK offers CAN SAE J1939 and CANopen for actuator controls). Integrated Controller (IC) solutions can provide various position feedback options, virtual limits, soft start and stop, current limitation, and adjustable speed.

Initializing a single actuator system

How to initialize a single actuator system

  1. Connect to a power outlet
  2. Actuators must be in the inner position
  3. Push the "down" button of the actuator on the hand control for approx. 5 seconds
  4. The actuator now initiates and can drive outwards
  5. Repeat this for each actuator by pressing the matching "down" button on the hand control
  6. The actuator system is now initialized
