Dual actuators

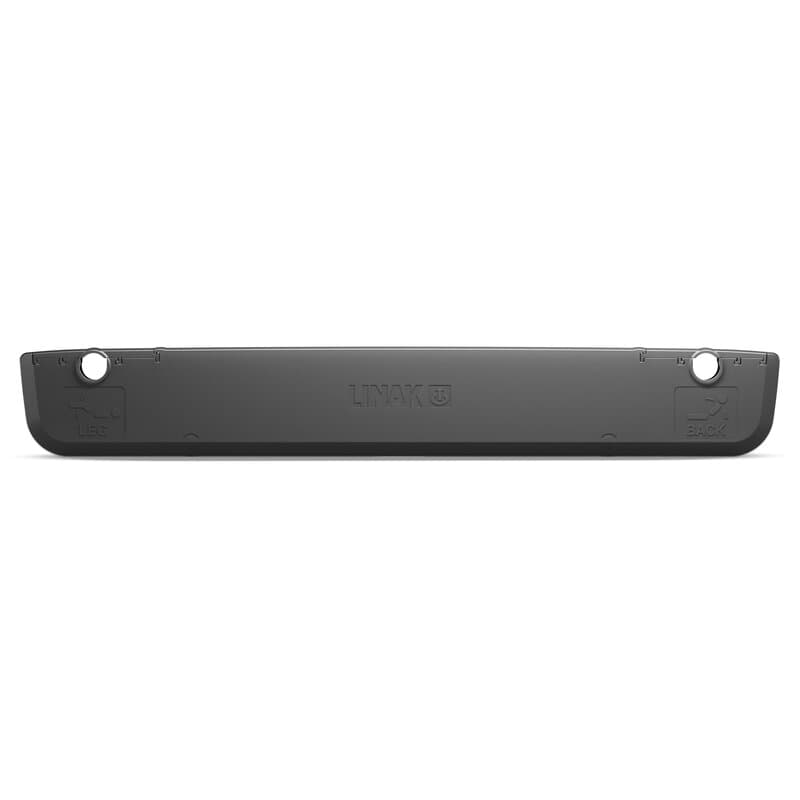

TD5 Standard

Low-weight all-in-one TWINDRIVE®­­ electric actuator ideal for box spring beds with a force up to 7,000 N in both back and leg end of the bed. The TD5 Standard is for bed systems requiring back and leg adjustment and, at the same time, a range of contemporary features.

TD5 Standard

The TWINDRIVE® TD5 is a dual actuator especially developed for box spring beds where a high force is required. With a force of 7,000 N on both back and leg ends, the TD5 is the strongest dual actuator in the LINAK HOMELINE® portfolio. The TD5 Standard is for bed systems requiring back and leg adjustment and, at the same time, a range of contemporary features. The TD5 features the well-known LINAK® ZERO™ technology, allowing a standby power of max. 0.1 W. This means the TD5 sleeps, when the user sleeps.

The TD5 features Bluetooth® Low Energy technology, which makes it capable of being controlled via the wireless LINAK hand controls, so the user avoids an annoying cable. Furthermore, it makes it possible to control the bed via the Bed Control App, which offers even more valuable features to the end user.

The TD5 is lightweight and has a slim design. As it is also easy to mount because of pictograms on the side and smart closing devices, the TD5 is optimal for shipping - even directly to the end user.

The TD5 has integrated an Under Bed Light, which distributes the light evenly on the floor, allowing users to find their way in the dark. The TD5 features mechanical emergency lowering via a hex key directly attached on the side of the TD5 – always in place when needed, e.g., in case of a power outage.


Product comparison charts


Dual actuator TD5 comparison chart
Get the quick overview of the difference between the Standard and Advanced versions of both the TD5.

TD5 comparison chart


TD5 Standard data sheet

View the data sheet as an online magazine or download the PDF.

TWINDRIVE® TD5 Standard User manual

This user manual will tell you how to install, use and maintain your LINAK TWINDRIVE products.

HOMELINE product overview

Explore the variety of TWINDRIVE systems with a low noise level and the small built-in dimensions used in both box spring beds and slatted beds.

Expanding your comfort zone

When it comes to leisure beds, LINAK understands the need for safe and reliable actuator systems that work day after day. The TWINDRIVE system is the right system for bed manufacturers.

Digital control options for adjustable beds - Adjust your bed with a mobile device

Use an app as a new and different kind of wireless hand control option. Read the brochure to learn what the LINAK Bed Control App offers. Also learn how you can customize the Bed Control App or use the LINAK Software Development Kit to tailor an app that reflects your brand.

Mechanical emergency lowering of TWINDRIVE TD4 or TD5

Watch this video, and learn more about the innovative mechanical emergency lowering feature you get with TWINDRIVE TD4. This procedure also applies to our TD5 Dual Actuators.

Mounting the TWINDRIVE TD4 and TD5

Watch this video, and learn how to mount the TWINDRIVE TD4 and TD5.

Pairing the Bed Control App to a TD4/TD5 system

How to pair the Bed Control App to the TD4/TD5 system

  1. Locate and download the Bed Control App in an App store
  2. Open the Bed Control App
  3. Make certain that your system is in pairing mode
  4. Choose your bed in the list and connect
  5. A long flash indicates successful pairing
  6. Start the onboarding flow
  7. Choose the features of your bed to complete the setup
  8. The system is now paired and ready for use
  9. Wait for five seconds before controlling your bed with different hand control options

Pairing the TWINDRIVE TD4 or TD5

With TWINDRIVE TD4 and TD5 it is easy to connect a control or a mobile device with the LINAK Bed Control app.

Simultaneous drive with the TD4/TD5 Standard

How to set up a double bed for simultaneous drive with the TD4 or TD5 Standard

The system consists of:
2 x TD4/TD5 Standard
2 x power cables
1 x Bluetooth® hand control

  1. Connect the two dual actuators TD4/TD5 to a power outlet
  2. The Under Bed Light on both TD4/TD5 dual actuators starts to flash to indicate pairing mode
  3. Pair the hand control (press the two top buttons simultaneously)
  4. A long flash indicates successful pairing
  5. Now both dual actuators TD4/TD5 Standard are paired to one hand control
