Lifting columns

DL6

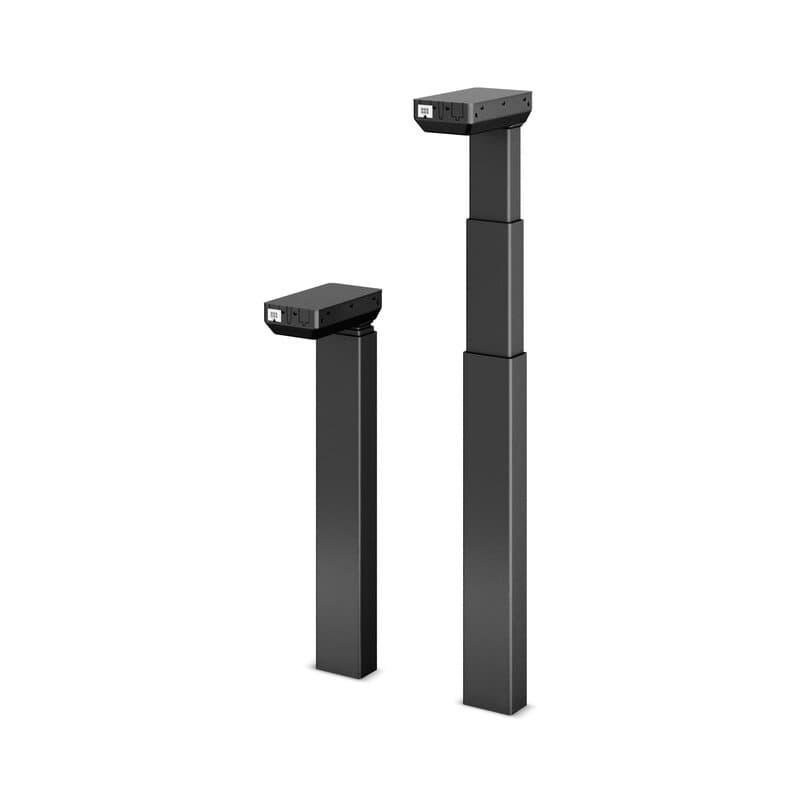

3-part lifting column with a compact motor housing almost invisible in your desk design. Very sturdy and compatible with multiple desk designs. LINAK PIEZO anti-collision system optional.

Product description

DL6

The DESKLIFT DL6 is a compact 3-part lifting column, which is a perfect choice for a wide range of different desk applications ranging from industry to office desks.

The 3-part construction ensures a short installation dimension combined with a long stroke length making the DL6 an optimum choice no matter what the height of the person using the desk is.

The middle profile of the DL6 moves synchronously, so the legs are always at the same height, thus optimizing the desk design.

The DL6 has a compact motor housing, which is almost invisible in the tabletop construction. The column is very sturdy so in many applications a crossbar is not necessary.

The DL6 has the same outer dimensions and mounting holes as the 2-part DL5 column, which makes them compatible. Therefore, they can be used in the same tabletop and table foot construction.

The DL6 is available in several standard colors to fit into a wide range of desk designs.

Optional PIEZO™ (collision protection) can be chosen. PIEZO minimizes the risk of damage to desks caused by collision with an obstacle.

The DL6 system is controlled by a DESKLINE® control box (CBD). No matter which box is preferred, they all ensure optimal parallel drive and a pleasant low noise level.

The DL6 can be used as a single column or in 2, 3 or 4 parallel systems.

  • Max. thrust: 1,200 N
  • Max. speed: 38 mm/s

Product data sheet
