Lifting columns

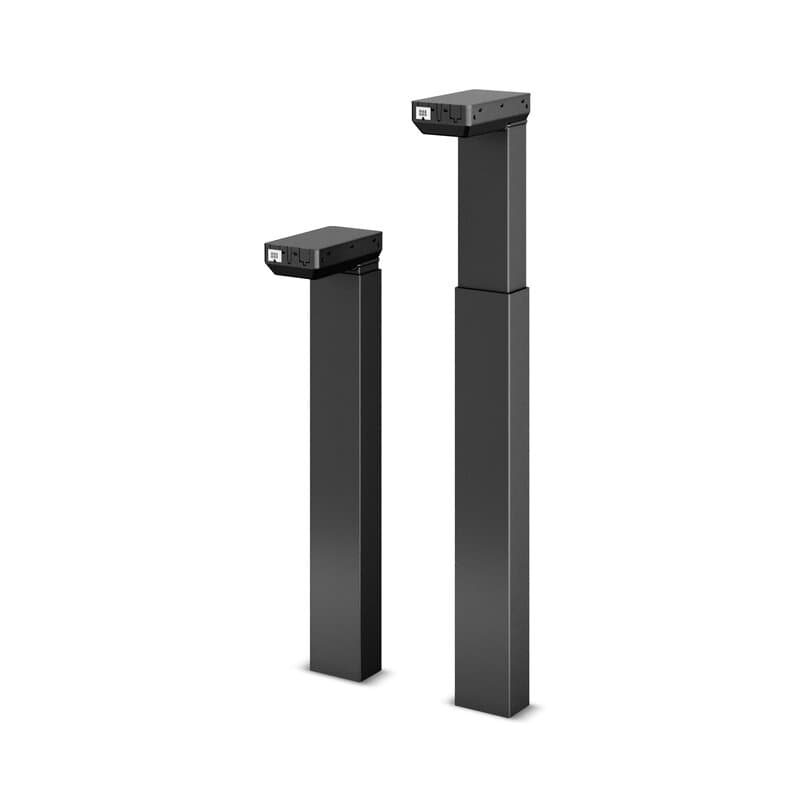

DL20

Sturdy and compact two-part lifting column with a 60 x 90 mm profile dimension. The compact motor housing is almost invisible in the tabletop construction and fits the LINAK Kick & Click™ top frame for easy mounting. The PLUS™ design ensures a clean column design without any visible gliding pads. Available in several colors. Optionally, the DL20 is available with PIEZO anti-collision; bench bracket for bench desk constructions; and/or trim rings for optimized appearance.

play-icon

DL PLUS™ lifting columns designed to inspire

DL20

The DESKLIFT™ DL20 is a compact two-part lifting column, which is a perfect choice for a wide range of different desk applications; from industrial and technical workstations to sit-stand office desks. The DL20 has a compact motor housing, which is almost invisible in the tabletop construction.

The column is very sturdy for which reason a crossbar is not necessary. The DL20 has the same outer dimensions as the three-part DL21 column, which makes them compatible and they can be used in the same tabletop and table foot construction.

The DL20 is a PLUS™ column ensuring a clean design without gliding pads. The column is available in three standard colors (black, grey and white) - and can optionally be delivered in other colors. Trim rings for optimized appearance are available in black, grey or white.

The DL20 system is controlled by the DESKLINE® control box (CBD).  The control box ensures optimal parallel drive and a pleasantly low noise level. The DL20 can be used as a single column or with 2, 3 or 4 columns in parallel systems, or up to 16 columns in multi-parallel systems. A Desk Sensor™ 1 anti-collision dongle can be added to the system to limit material damage to a desk or an object in case a collision occurs during driving of the desk.


DL20 data sheet

View the data sheet as an online magazine or download the PDF.

3D Models

No 3D drawings available.
Please contact your local LINAK representative for more information.

DL21 with CBD6S User manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

DESKLINE product overview

If you make any kind of desk, table or counter that people work at, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

MOVE – Why sit-stand desks increase work performance

Reduce sick days and create a modern office environment with electric sit-stand desks. An attractive investment for employers and their employees.
