Controls

DPG with reminder

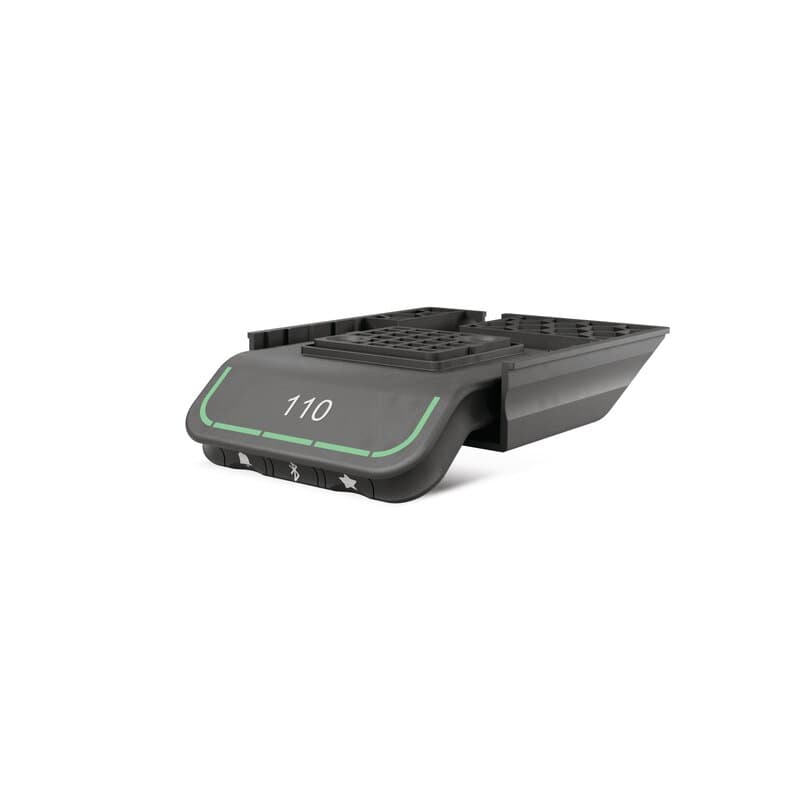

DPG1M, DPG1B, and DPG1C are a family of intuitive LINAK® Desk Panels operated by a gentle tilt. They come with Bluetooth® wireless technology as well as memory and reminder functions.

Product description

DPG with reminder

DPG desk panel models with reminder
The DPG with reminder family consists of DPG1M, DPG1B and DPG1C Desk Panel models. All DPG models are activated by tilting; an easy, intuitive way to adjust a desk without any attention needed. With the DPG, you get up to four memory positions which are reached by simply tilting the panel until the desk stops at the stored position.

Color signals for the user to change position
The integrated reminder function for the three DPG Desk Panel models operates using a light. Its color reflects the current usage status of the desk. A change in the light's color reminds the user when it is time to change positions. As such, the reminder function naturally helps the user achieve a healthy variation in postures throughout the day.

Compatible with the Desk Control™ app
DPG Desk Panel models with a reminder function are compatible with the Desk Control app and use integrated Bluetooth® wireless technology. The app allows the user to keep track of his/her personal desk usage statistics on a smart device and to receive notifications of when to stand.



Product data sheet

DPG1M data sheet

View the data sheet as an online magazine or download the PDF

DPG1B data sheet

View the data sheet as an online magazine or download the PDF

DPG1C data sheet

View the data sheet as an online magazine or download the PDF

Brochures & manuals

Desk Panels DPG and Desk Control app user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE® products.

DESKLINE product overview

If you make any kind of desk, table or counter that people work at, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

Focus on office desks

Electric adjustment of office desks fits dynamic work styles and the new way of working.

Move brochure

A small booklet about why and how height adjustable desks should be used.

DPG brochure

A new way to adjust the office desk.

Support

The desk does not drive at all

Check: Is the power line connected to the control box?
Try/Solution: Try to connect a lamp or similar to the power outlet to check that the supply voltage is OK.

Check: Are all plugs mounted correctly on the control box and the leg?
Try/Solution: Check all connections.

Check: Is there any visible damage to the cables, controls, control box or legs?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the desk.

DPG – Reset possibilities

There are three reset possibilities:

  • Reset of memory positions
  • Reset of light strip reminder
  • Factory reset

To reset all memory positions, press and hold the “star” button for 8 seconds until the light flashes red.

To reset the light strip reminder, press and hold the “bell”-button for 8 seconds until the light flashes red.

Factory settings:
To return to factory settings press and hold the “bell”- button and the “star”-button for 8 seconds until the light flashes red.

DPG - How to initialize and adjust the desk

To initialize the desk, drive downwards, press and hold the tilt until movement has been performed.

To adjust the desk, tilt the panel down for driving downwards and up for driving upwards.

DPG – How to store up to 4 memory positions and how to reset memory

The DPG with display has 4 memory positions in total.

Drive to the required desk height and then toggle the “star”-button until the display shows either “star 3” or “star 4.” Release button.

To store a position press the “star”-button for 2 seconds. White light flashes and becomes static when the positon is saved.

To reset all memory positions press and hold the “start”-button for 8 seconds, until the light flashes red.

DPG - Set correct desk height. Change between inches and cm.

Set correct desk height:
If the height shown in the display is not the actual height of the desk, it can be corrected.

Measure the height of the desk from floor to tabletop. Press the “bell” button and the Bluetooth®  button for 5 seconds. When the display starts to blink, tilt the panel upwards if the number is too low or downwards if the number is too high.

Change between cm and inches:
Change between cm and inches by pressing the “star” button and the Bluetooth® button for 5 seconds. When the display starts to blink, tilt the panel up or down and the unit changes.

DPG - How to pair to an app

Press the Bluetooth® button for 2 seconds. The light strip will start to blink with a blue color. The display shows the ID of the desk.

Open your downloaded app and connect to the desk. Look for the correct ID in the list of “Desks nearby.”

Follow the connection instructions in the app.

DPG - How to use memory

To store a memory position drive to the required position.
Press the “Star” button for 2 seconds.
White light flashes and becomes static when position is saved.

Tilt and hold, to drive to a memory position.

If the DPG features automatic drive, tap twice on the DPG in the direction you want to drive. The DPG stops at the first stored position in the chosen direction.



DPG – Light strip reminder

The light strip reminds you when it is time to stand up.
Green = ok
Orange = it is time to stand up

Default setting is 55 minutes sitting.
Press the “bell”-button to see the interval.

How to change interval or choose “OFF.”

Change your interval by toggling between the 4 settings.

Interval 1: Reminder after 55 minutes sitting

Interval 2: Reminder after 50 minutes sitting

Interval 3: Reminder after 45 minutes sitting

Interval 4: OFF disable the function

How to reset the light strip reminder.

To reset the light strip reminder press and hold the “bell”-button for 8 seconds until the light flashes red.

Desk Panel DPG1M - How to initialize and adjust the desk

To initialize the desk, drive downwards, press and hold the tilt until movement has been performed.

To adjust the desk, tilt the panel down for driving downwards and up for driving upwards.

Desk Panel DPG1M - How to reset the Desk Panel

There are three reset possibilities:

  1. Reset of memory positions
    Press and hold the “star” button for 8 seconds until the LED flashes red
  2. Reset of the LED light reminder
    Press and hold the “bell” button for 8 seconds until the LED flashes red
  3. Factory reset
    Press and hold the “bell” button and the “star” button for 8 seconds until the LED flashes red.


Desk Panel DPG1M - How to pair to an app

Press the Bluetooth® button for 2 seconds.
The LED starts to flash with a blue color.

Open your downloaded app and connect to the desk.
Look for your desk in the list of “Desks nearby.”

The LED will flash in a blue color when connected.

Follow the connection instructions in the app.

Desk Panel DPG1M - How to use memory and automatic drive

To store a memory position drive to the required position.
Press the “star” button for 2 seconds.
White light flashes and becomes static when the position is saved.

Tilt and hold to drive to a memory position

Automatic drive between two memory positions
(If your desk panel features automatic drive)

Enable automatic drive in the Desk Control™ App.
Tap the desk panel twice in the direction you want to drive.
The desk drives automatically to your stored position.

To reset all memory positions, press and hold the “star” button for 8 seconds until the light flashes red.



Desk Panel DPG1M - How to use the LED light reminder

The light reminds you when it is time to stand up.

Green = OK
Orange = It is time to stand up

Set individual goals or deactivate reminder
The default setting is a reminder after 55 minutes sitting.

Set your goal
Interval 1: Reminder after 55 minutes sitting
Interval 2: Reminder after 50 minutes sitting
Interval 3: Reminder after 45 minutes sitting
Interval 4: Disable reminder

Change the interval by pressing the “bell” button.

How to reset the LED
Press and hold the “bell” button for 8 seconds until the LED flashes red.
