Controls

DPF

The DPF is an elegant and compact desk panel for adjustable desks, tables and kitchens. Comes with soft buttons intuitively placed and can control up to 3 references.

Product description

DPF

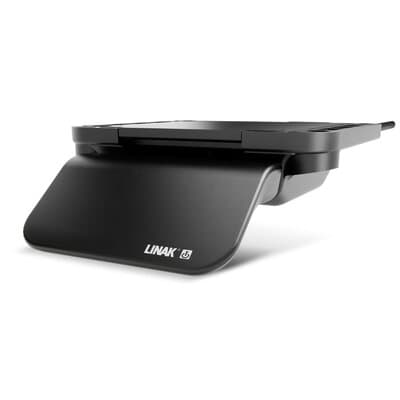

The desk panel DPF is a perfect choice for a wide range of desks and workstations with a demand for either just up and down drive or up, down and memory.

The hallmark of the desk panel series DPF is the modern design, which combines classic looks with intuitive, practical use.

The up and down buttons have been made extra “user-friendly” as they are shaped “according to the function,” meaning the user can feel the differences and it is not necessary to look when operating the system.

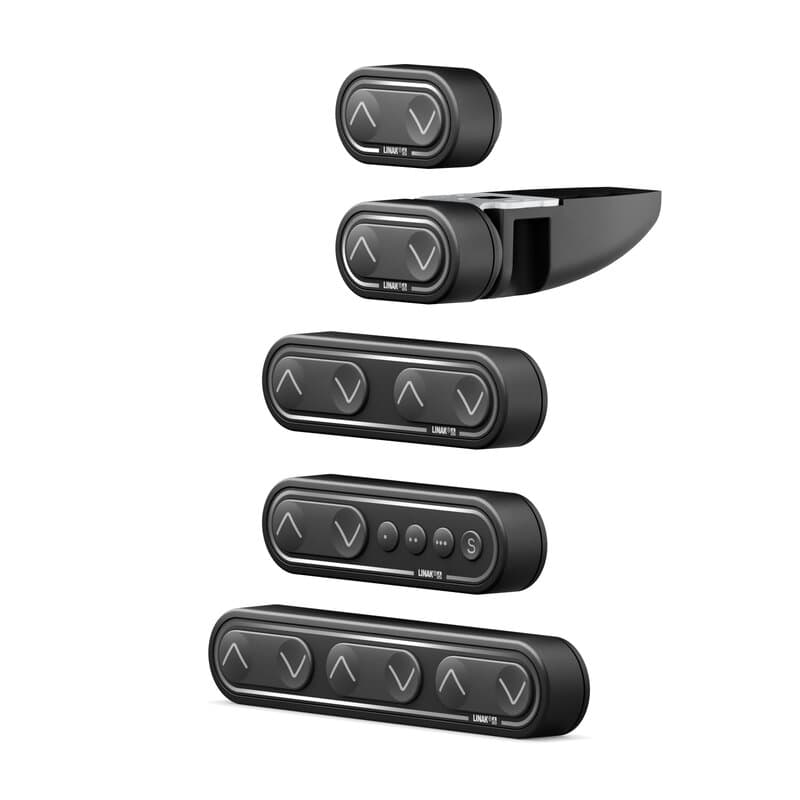

The DPF is available in a small, compact up/down, with 2 or 3 references or in an M-version which also features memory for storing your favorite positions.

Product data sheet

DPF data sheet

View the data sheet as an online magazine or download the PDF.

View

2D / 3D

2D Drawings

3D Models

Brochures & manuals

DB5/DB6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL1A system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL2 and CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL2 and CBD4, CBD5, CBD6 systems user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL2 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL4S system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL5/DL6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL7 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL8, DL9, DL10, and DL11 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL8, DL9, DL10 and DL11 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL12, DL14, DB14, DL17 system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL12, DL14, DB14, DL17 system with CBD4, CBD5 or CBD6 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL15/DL16 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL15/DL16 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

Controls and handsets user manuals

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

Focus on kitchens

Take your kitchen to the next level. Only your imagination will set limits to how electric movement can improve tomorrow’s kitchen.

View

Focus on store interiors

Propelled by LINAK electric actuators, height adjustable counters allow all members of staff to pick a position that is right for them, any time of the day, whatever the task.

View

Production ergonomics

Improved ergonomics helps lessen muscle fatigue and musculoskeletal disorders

View

DESKLINE product overview

If you make any kind of desk, table or counter that people work at, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

View

DESKLINE quality matters

We use high quality components, state-of-the art production and the most demanding testing standards in the industry to achieve excellent quality.

View

The green criteria - PVC-free products

There are alternatives to materials containing PVC. Learn more about why we are adapting to the new green criteria and offering PVC-free solutions

View

Baselift: ergonomics meets innovation

Baselift is a compact unit used for height adjustment of kitchens, cabinets and counters.

View

Support

How to initialize your desk

The desk cannot drive up if it has not been initialized.

If display: error code E01, the desk must be initialized.

How to initialize:

  1. Press down key and drive to the lowest position. Hold the key until the desk stops completely.
  2. Reactivate the down key and hold the key until the desk stops completely.

Now the desk can drive up.

How to store a memory position

Favorite positions for sitting and/or standing can be stored. Follow the procedure shown in the video or the instructions below.

How to store a position

  1. Drive to the height you wish to store
  2. Press ‘S’ and then the memory button

Your position has now been stored.

To recall your memory position, press the memory button until you reach the stored position.

The desk can only drive downwards

The desk must be initialized.

Follow the procedure shown in the video.

The desk does not drive at all

Check: Is the power line connected to the control box?
Try/Solution: Try to connect a lamp or similar to the power outlet to check that the supply voltage is OK.

Check: Are all plugs mounted correctly on the control box and the leg?
Try/Solution: Check all connections.

Check: Is there any visible damage to the cables, controls, control box or legs?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the desk.

Desk can not be raised full stroke. Always stops in same position

The system has set a new end-stop outwards.

To erase this position, the desk must be initialized again. Follow the procedure shown in the video.
