Controls

DP1CS

The DP1CS is an ideal desk panel for office desks as well as workstations. Comes with memory function and display in either cm or inches and read-out error codes.

Product description

DP1CS

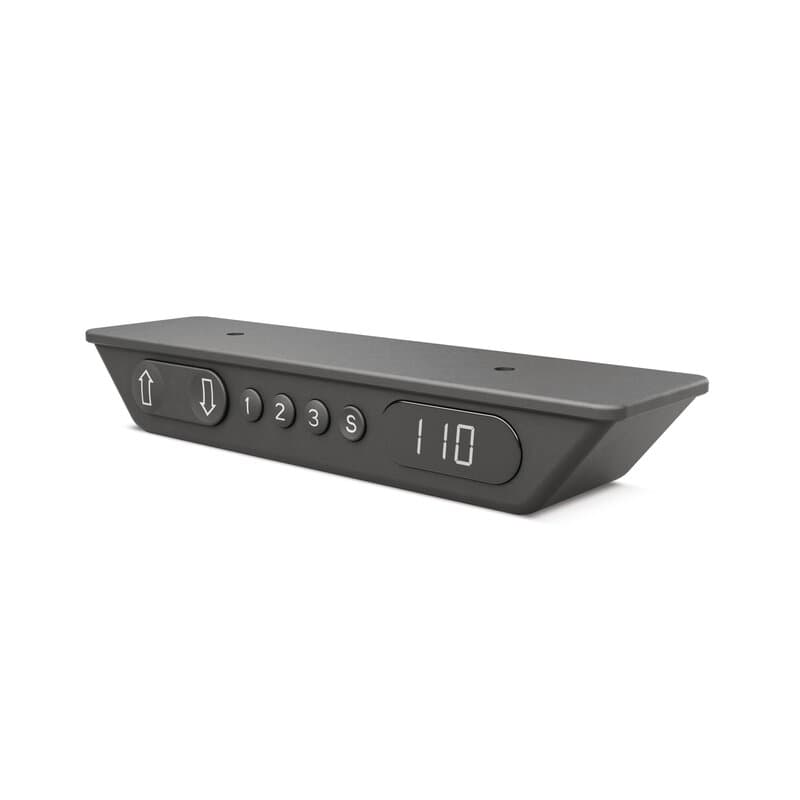

The desk panel DP1CS is a perfect choice for a wide range of desks and workstations with a demand for a panel with height read-out.

The up and down buttons have been made extra “user-friendly” as they are shaped “according to the function,” meaning the user can feel the differences and it is not necessary to look when operating the system.

The DP1CS has a display for height read-out in either cm or inches. The display switches off when not in use, thereby saving power in standby mode.

As an extra feature, the panel can be used for diagnostics as error codes can be displayed.

Product data sheet

DP1CS data sheet

View the data sheet as an online magazine or download the PDF.

View

2D / 3D

2D Drawings

3D Models

Brochures & manuals

DB5/DB6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL1A system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL2 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL2 and CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL2 and CBD4, CBD5, CBD6 systems user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL4S system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL5/DL6 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL7 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL8, DL9, DL10, and DL11 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL8, DL9, DL10 and DL11 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL12, DL14, DB14, DL17 system with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL12, DL14, DB14, DL17 system with CBD4, CBD5 or CBD6 user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL15/DL16 with CBD6S user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

DL15/DL16 system user manual

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

Controls and handsets user manuals

This user manual will tell you how to install, use and maintain your LINAK DESKLINE products.

View

Focus on office desks

Electric adjustment of office desks fits dynamic work styles and the new way of working.

View

DESKLINE product overview

If you make any kind of desk, table or counter that people work at, a height adjustable electric actuator solution is the flexible way to gain a competitive edge and improve your business.

View

DESKLINE quality matters

We use high quality components, state-of-the art production and the most demanding testing standards in the industry to achieve excellent quality.

View

The green criteria - PVC-free products

There are alternatives to materials containing PVC. Learn more about why we are adapting to the new green criteria and offering PVC-free solutions

View

Support

DP1C and DPT - The height in the display is not correct

Change the height in the display to the correct height of the desk by following the procedure shown in the video or described below.

How to set the height of your desk (DP1C and DPT)

Measure the actual height of your desk – from floor to the upper edge of the tabletop.

  1. Press ‘S’ and keep pushing the button until an ‘S’ appears in the display
  2. While pushing ‘S’ use the up and down key to change the figure to the actual height

How to initialize your desk

The desk cannot drive up if it has not been initialized.

If display: error code E01, the desk must be initialized.

How to initialize:

  1. Press down key and drive to the lowest position. Hold the key until the desk stops completely.
  2. Reactivate the down key and hold the key until the desk stops completely.

Now the desk can drive up.

How to store a memory position

Favorite positions for sitting and/or standing can be stored. Follow the procedure shown in the video or the instructions below.

How to store a position

  1. Drive to the height you wish to store
  2. Press ‘S’ and then the memory button

Your position has now been stored.

To recall your memory position, press the memory button until you reach the stored position.

The desk can only drive downwards

The desk must be initialized.

Follow the procedure shown in the video.

The desk does not drive at all

Check: Is the power line connected to the control box?
Try/Solution: Try to connect a lamp or similar to the power outlet to check that the supply voltage is OK.

Check: Are all plugs mounted correctly on the control box and the leg?
Try/Solution: Check all connections.

Check: Is there any visible damage to the cables, controls, control box or legs?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the desk.

Desk can not be raised full stroke. Always stops in same position

The system has set a new end-stop outwards.

To erase this position, the desk must be initialized again. Follow the procedure shown in the video.
