DPT

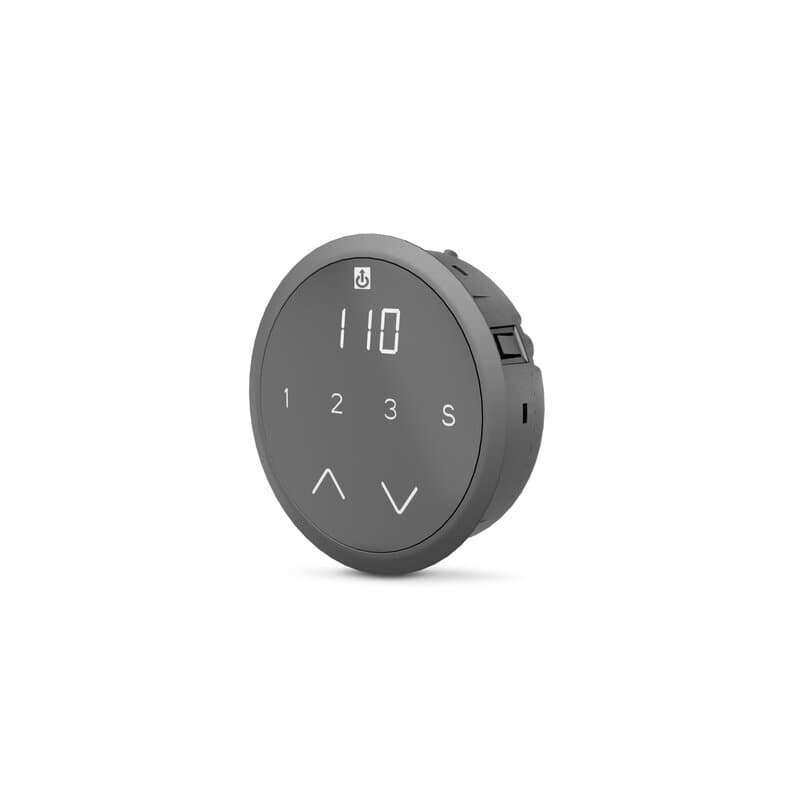

The DPT is an innovative DESKLINE® touch panel from LINAK. The panel is the perfect choice for office desks where modern design is the keyword.
The sophisticated solution is based on touch techniques, e.g., as seen in induction stoves, and combines high-class design with high-class techniques, i.e., movement via a simple touch.
The DPT is designed for integration directly into the tabletop, ensuring an optimal ergonomic experience for the end-user. Integration into the tabletop ensures that the panel is completely integrated in the desk design.
The DPT shows the actual desk height in a display. Besides ordinary up-down adjustment, it has 3 memory positions and is compatible with control boxes CBD4 and CBD6S.
The DPT is available in a 1-channel version for operation of single or parallel channels. As an end-user service, the
DPT can show error codes and helps diagnose possible failures in the system.
DB5/DB6 with CBD4/CBD5/CBD6 user manual
DL1A system user manual
DL2 and CBD6S user manual
DL2 and CBD4, CBD5, CBD6 systems user manual
DL4S system with CBD6S user manual
DL5/DL6 system user manual
DL7 system user manual
DL8, DL9, DL10, and DL11 with CBD6S user manual
DL8, DL9, DL10 and DL11 user manual
DL12, DL14, DB14, DL17 system with CBD6S user manual
DL12, DL14, DB14, DL17 system with CBD4, CBD5 or CBD6 user manual
DL15/DL16 with CBD6S user manual
DL15/DL16 system user manual
Controls and handsets user manuals
Focus on kitchens
DESKLINE product overview
DESKLINE quality matters
How to clean your desk panel
Watch and learn how to easily clean your LINAK desk panel/switch in this short instruction video: How to clean it; which cleaning agents to use; and, last but not least, what you need to pay attention to.
Clean your desk panel with a soft damp cloth. Universal cleaning detergents may be used.
For disinfection of the desk panel, use a 70 percent isopropyl alcohol either as a wipe or add a small amount to a soft cloth.
Warnings
The desk panel is not a sealed unit and there are electronics inside it. If liquids or moisture enter an opening, the PCB may be damaged, and the desk panel ruined.
Therefore:
- Avoid moisture penetrating any openings as this may damage the PCB inside the desk panel
- Avoid spraying the cleaning agent or disinfectant directly on the desk panel as moisture may penetrate openings and damage the PCB inside the desk panel
- Cleaning agents and disinfectants must not be highly alkaline or acidic (pH value must be 6 to 8), and they must not contain bleach or chlorine
- Do not use hand sanitizer gel as a cleaning agent
Alkaline and acidic cleaning agents may, over time, decompose the housing. Hand sanitizer gel may deposit on the desk panel buttons. Over time, the buttons may be stuck, or they may not work properly.
The display shows an E01 error code instead of the height
The desk cannot drive up if it has not been initialized
If the display shows error code E01, the desk must be initialized.
How to initialize:
- Press down key and drive to the lowest position. Hold the key until the desk stops completely.
- Reactivate the down key and hold the key until the desk stops completely. Now the desk can drive up.
DP1C and DPT - The height in the display is not correct
Change the height in the display to the correct height of the desk by following the procedure shown in the video or described below.
How to set the height of your desk (DP1C and DPT)
Measure the actual height of your desk – from floor to the upper edge of the tabletop.
- Press ‘S’ and keep pushing the button until an ‘S’ appears in the display
- While pushing ‘S’ use the up and down key to change the figure to the actual height
How to store a memory position
Favorite positions for sitting and/or standing can be stored. Follow the procedure shown in the video or the instructions below.
How to store a position
- Drive to the height you wish to store
- Press ‘S’ and then the memory button
Your position has now been stored.
To recall your memory position, press the memory button until you reach the stored position.
How to initialize your desk
The desk cannot drive up if it has not been initialized.
If display: error code E01, the desk must be initialized.
How to initialize:
- Press down key and drive to the lowest position. Hold the key until the desk stops completely.
- Reactivate the down key and hold the key until the desk stops completely.
Now the desk can drive up.
The desk can only drive downwards
The desk must be initialized.
Follow the procedure shown in the video.
The desk does not drive at all
Check: Is the power line connected to the control box?
Try/Solution: Try to connect a lamp or similar to the power outlet to check that the supply voltage is OK.
Check: Are all plugs mounted correctly on the control box and the leg?
Try/Solution: Check all connections.
Check: Is there any visible damage to the cables, controls, control box or legs?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the desk.
Desk can not be raised full stroke. Always stops in same position
The system has set a new end-stop outwards.
To erase this position, the desk must be initialized again. Follow the procedure shown in the video.
The display only shows a line (-) and does not work
The DPT is locked when not in use to avoid unintended drive.
To unlock the DPT follow the procedure shown in the video.
Desk Panel DPT - The display shows the ‘E01’ error code instead of the height
The desk cannot be raised if it has not been initialized.
If the display shows error code 'E01', the desk has not been initialized.
How to initialize your desk:
- Press the down key until the desk is lowered completely. Hold the key until the desk no longer moves.
- Reactivate the down key and hold until the desk no longer moves. Now the desk can be raised.
