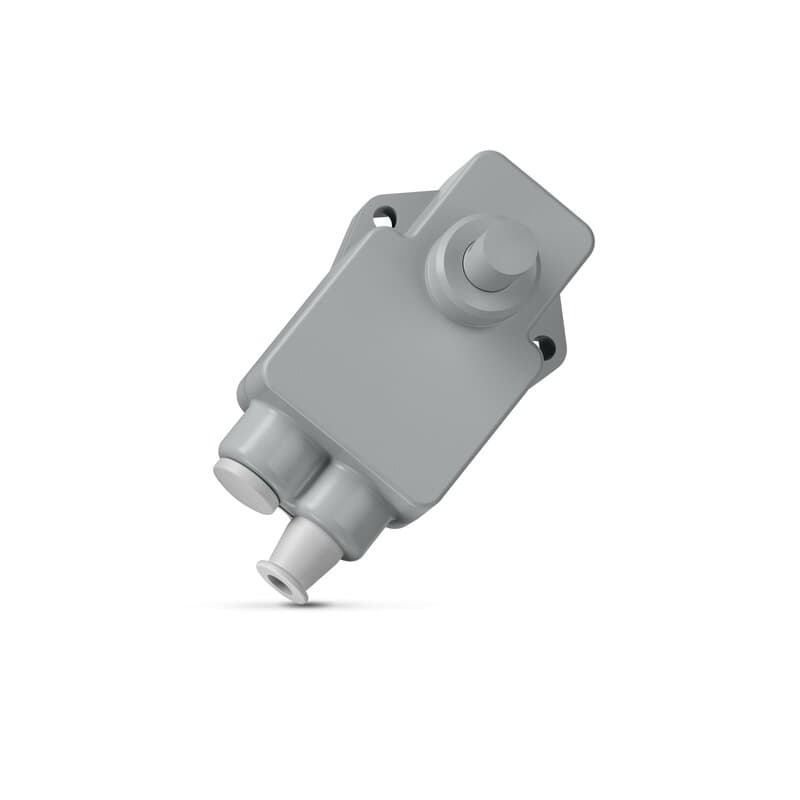

SLS is a safety limit switch used in LINAK linear actuator systems, where unintentional positioning must be prevented.

Product description


LINAK has designed a switch that can be mounted in connection with the 24V DC actuators: LA12, LA22, LA28, LA31, LA32, LA34, LA44 or BL1 and a control box on, for example, a bedframe. The SLS can be a safety feature that cuts off the current to the actuator.

The SLS is available with 1 or 2 switches (activated at the same time). It can be placed to prevent an unintentional positioning of the various frame segments in relation to each other or simply as an external limit switch to protect the frame against the full thrust of the actuator in end position. The actuator stops immediately when the button is pressed.

It is necessary to specify whether the actuator is moving out or in when the switch is activated and stops the actuator. Additionally, the SLS can be used as an external signal unit that, e.g., sends a signal to a control box. This signal can limit or interrupt the functions on a bed, for example.
