LA76
Versatile electric linear actuator that delivers both robustness and long-term reliability. It excels in challenging environments and is a wise choice for a wide array of industrial machinery and applications that require high-level performance.- Max. load: 6,800 N
- Max. speed: 142 mm/s
- Extended service life
LA76

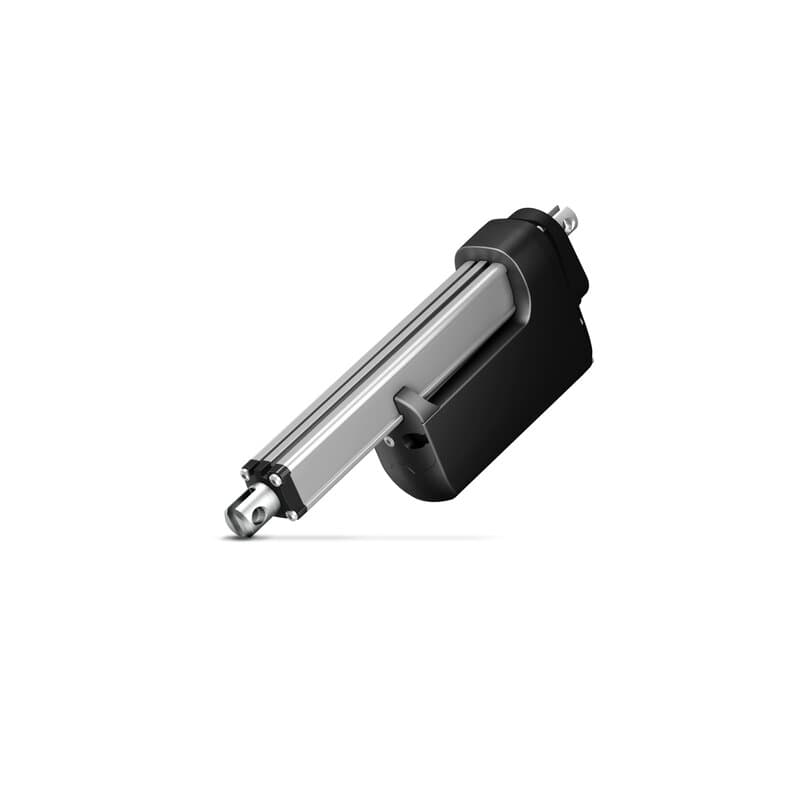

The LA76 is a robust and highly versatile electric linear actuator.
Equipped with a brushless DC motor (BLDC) this actuator offers an extended service life. It has been tested to run a minimum of 200,000 cycles at maximum load and maximum duty cycle, showcasing its long-term performance.
This maintenance-free actuator is designed to excel in harsh environments and undergoes rigorous testing to ensure durability against dust, vibrations, salt vapours, water ingress, heat, and shock.
The LA76 is well-suited for a broad range of applications in areas such as material handling, industrial automation, marine and outdoor power equipment.
- Max load: 6,800 N
- Max. speed: 142 mm/s
- Stroke length: 100–1200 mm
- Motor voltage: 24 V and 48 V
- IP ratings: IP66 dynamic and IP69K static
The LA76 is part of the IC Integrated Controller™ range, designed to integrate seamlessly with existing control systems. It offers a variety of industrial interfaces for smart and reliable movement.
You can choose the universal LINAK® I/O™ interface or select from a comprehensive range of communications protocols, including:
Fieldbus:
Industrial Ethernet:
Additionally, several of these options include Danfoss Plus+1® Compliance.
Learn more about actuators with IC – Integrated Controller™.
2D/3D
Need to validate mechanical fit? Download configurable 3D models here to quickly validate dimensions, mounting options, and mechanical fit before creating your first mockup.
Downloads
Linear Actuator LA76 User Manual
CANopen User Manual
EtherNet/IP™ User Manual
IO-Link User Manual
RS485 Modbus RTU User Manual
Modbus TCP/IP User Manual
PROFINET User Manual
CAN SAE J1939 User Manual
CANopen User Manual v1.4
SAE J1939 CAN Bus version 1.1 User Manual
SAEC J1939 CAN bus Version 3.1 User Manual v1.3
I/O™ Interface User Manual
Actuator Connect™
Digital products
LINAK Actuator Connect configurator helps you configure actuators with IC Integrated Controller™. Adjust parameters such as start/stop settings, virtual limits, and current limits, and read-out real-time and historical usage data.
- Flexible prototyping
- Analyze performance
- In-depth troubleshooting
