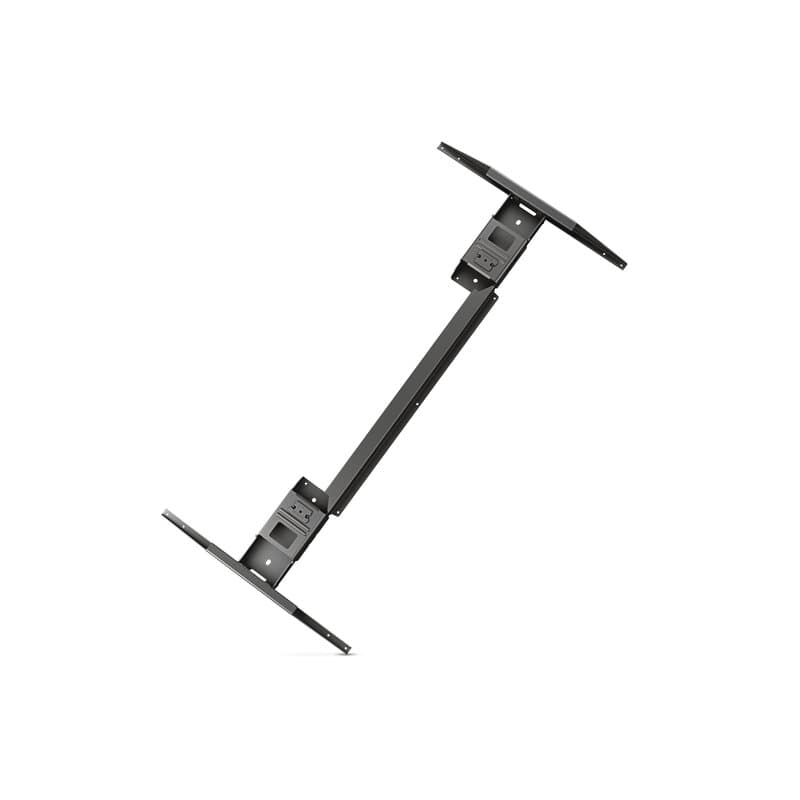

Kick & Click™ top frame
The LINAK Kick & Click™ top frame is the smart and intuitive solution for mounting DESKLIFT™ columns to the tabletop. The Kick & Click top frame comes in different variants and sizes fitting various tabletop widths: 100 - 130 cm (K&C Adjustable Compact); 140 - 200 cm (K&C Adjustable Standard); 120 cm (K&C Fixed); as well as the K&C Base variant for flexible widths. All variants are made for easy assembly - simply “kick” and “click” the different parts together. No toolboxes, screws and bolts needed.- Intuitive mounting solution
- Quick assembly, no screws
- Available in 3 variants
Kick & Click™ top frame
The Kick & Click™ system is a smart and intuitive mounting solution for mounting Desklift columns to the tabletop.
The solution is perfect for various office desks. The unique feature of Kick & Click is the method of mounting.
Click the system together without using tools and screws, simply clever.
Kick & Click is a modular concept compatible with all DESKLINE columns with motor housing, leaving the design to the desk manufacturer.
Kick & Click comes standard in three variants: Kick & Click Adjustable (standard or compact), Kick & Click Fixed and Kick & Click Base.
Additionally, Kick & Click can be used for creating large three-legged office desks by joining a Kick & Click 3rd-leg with a Kick & Click system.
8.7.1
DL16
Accessories
Long-stroke and low-noise electric column intended for desks and tables without a crossbar. Ideal for both larger desks and conference tables.
- Rectangular 50 x 80 mm
- 3-stage upside down design
- Motor housing
DL6
Accessories
Versatile 3-stage lifting column with a compact motor housing compatible with multiple desk designs – for both industry and office. Reinforced 50 x 80 mm column and optimized motor-housing design for extra strength, stability, and sturdiness. Optionally, the DL6 is available as DL PLUS™ (no visible gliding pads); as DL PLUS™ High-speed (60 or 80 mm/s); with PIEZO™ anti-collision; 1200 N load per column; and bench bracket.
- Rectangular 50 x 80 mm
- 3-stage
- Motor housing
DL9
Accessories
Long-stroke electric column for a wide range of adjustable office desks and TV/Monitor stands. Upside down construction enables compact and clean design. Sturdy, easy to mount, low-noise.
- Round Ø 70 mm
- 3-stage upside down design
- Motor housing
DL15
Accessories
Low-noise electric column allowing smooth adjustment of desks and tables. Optimal for parallel drive in desks or tables. This upside down column is sturdy and requires no crossbar, leaving you with design freedom.
- Rectangular 43.5 x 73.5 mm
- 2-stage upside down design
- Motor housing
DL5
Accessories
Reinforced 50 x 80 mm, 2-stage lifting column with compact motor housing, designed for extra strength, stability, and sturdiness. Available in 800 N and 1200 N versions, this lifting column offers versatile use: from office desks to heavy-duty applications such as mobile charts, packaging or sorting desks, and other industrial workstations. Optionally, the DL5 is available as DL PLUS™ without visible gliding pads and with bench brackets.
- Rectangular 50 x 80 mm
- 2-stage
- Motor housing
DL11
Accessories
Elegant, round, 3-stage lifting column ideal for both sit-stand desks and display and monitor stands. Sturdy Ø70 mm column with optimized motor-housing design for extra strength and stability. Optionally, the DL11 is available as DL PLUS™ (no visible gliding pads); as DL PLUS™ High-speed (60 or 80 mm/s), with PIEZO™ anti-collision; and as DL11 XL (optimized for display and monitor stands).
- Round Ø 70 mm
- 3-stage
- Motor housing
DL19
Accessories
A very sturdy 3-stage lifting column with motor housing and a unique square profile design (70 x 70 mm) ideal for office desks and tables. Fits with the LINAK Kick & Click™ top frame, making it very easy to mount. Optionally, the DL19 is available as DL PLUS™ design (no visible gliding pads); as DL PLUS™ High-speed (60 or 80 mm/s); with PIEZO anti-collision; bench bracket; and/or trim rings for optimized appearance.
- Square 70 x 70 mm
- 3-stage
- Motor housing
DL8
Accessories
Cost-effective electric lifting column for a variety of office desks. Upside down construction gives it a compact and clean design. Sturdy, easy to mount, low-noise and smooth movement as either a single column or in parallel drive setup.
- Round Ø 63.5 mm
- 2-stage upside down design
- Motor housing
DL10
Accessories
Cost-effective 2-part lifting column in a compact and round design. This low-noise and very robust column is compatible with multiple types of adjustable office desks and tables. The column fits the LINAK Kick & Click™ top frame for easy mounting. Available in several standard colors and as DL10 PLUS™ (no visible gliding pads). The column is compatible with DESKLIFT™ Feet.
- Round Ø 70 mm
- 2-stage
- Motor housing
DESKLIFT™ SetPack
Accessories
Selected LINAK® lifting columns are available as a DESKLIFT™ SetPack solution. One box includes everything you need for the assembly of your 2-leg desk.
- Set of 2 legs with accessories
- Stable cardboard box
- Fits Euro pallets
DL Feet
Accessories
A wide range of feet for lifting columns with rectangular, square, or round profiles. DL Feet are available for both T and C-shaped desk designs, in two lengths (560 or 710 mm) and three colours (black, grey and white). Choose between on-top or recessed mounting or the click-on version for a fast assembly. With the discreet and unobtrusive design, the DL Feet are also ideal for various full frames. Combine DL Feet with a Desk Frame 1 or a Desk Frame 2 to create a user-friendly, easy-to-assemble standing desk frame.
- For T and C desk designs
- Two lengths – three colours
- Mounting: On top, recessed or Click-on
